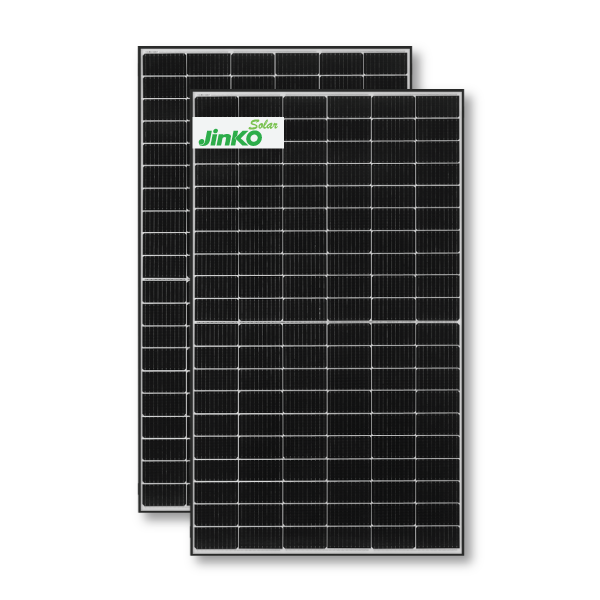

Jinko Solar Panel Tiger N-Type 440W NEO

Jinko Solar Panel Tiger N-Type 54HL4R-V 440W NEO

The Jinko 440W N-Type Mono Facial solar panel is a 440W monocrystalline module with 108 cells from Jinko Solar, one of the world's leading manufacturers of the photovoltaic industry. Jinko solar panels come with a massive 15-year product warranty and a 30-year linear power warranty.

N-type Technology
N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.

HOT 2.0 Technology
N-type modules with JinkoSolar's HOT 2.0 technology offer better reliability and efficiency

Durability Against Extreme Environments
High salt mist and ammonia resistance.

Mechanical Load Enhanced
Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load

SMBB Technology
Better light trapping and current collection to improve module power output and reliability.

Anti-PID Guarantee
Minimizes the chance of degradation caused by PID Phenomena through optimization of cell production technology and material control

Tiger 440W NEO

• Electrical Data | STC*
• Nominal Max. Power (Pmax): 440W
• Opt. Operating Voltage (Vmp): 32.81V
• Opt. Operating Current (Imp): 13.41A
• Open Circuit Voltage (Voc): 39.38V
• Short Circuit Current (Isc): 13.86A
• Module Efficiency up to: 22.02%

• Cell Type: N type Mono-crystalline
• No. of cells: 108 (54x2)
• Dimensions: 1762×1134×30mm
• Weight: 21.00 kg
• Front Glass: 3.2 ,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
• Frame: Anodized Aluminium Alloy
• Junction Box: IP68 Rated

· IEC61215 (2016) / IEC61730 (2016)
· IEC61701 / IEC62716 / IEC60068 / IEC62804
· ISO9001:2015: Quality Management System
· ISO14001:2015: Environment Management System
· ISO45001:2018: Occupational health and safety management systems
