JiKong 1A/2A balance 7s/8s-16s 100a 150a 200a 24v/36v/48v PB2A16S20P battery management system inverter smart jk lifepo4 bms
JiKong 1A/2A balance 7s/8s-16s 100a 150a 200a 24v/36v/48v PB2A16S20P battery management system inverter smart jk lifepo4 bms
Regular price
R 999.99
Regular price
R 0.00
Sale price
R 999.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
APP download
Download link-IOS : Search (JIKONG BMS) in the APP STORE
Download link-Andriod :https://play.google.com/store/apps/details?id=com.jktech.bms

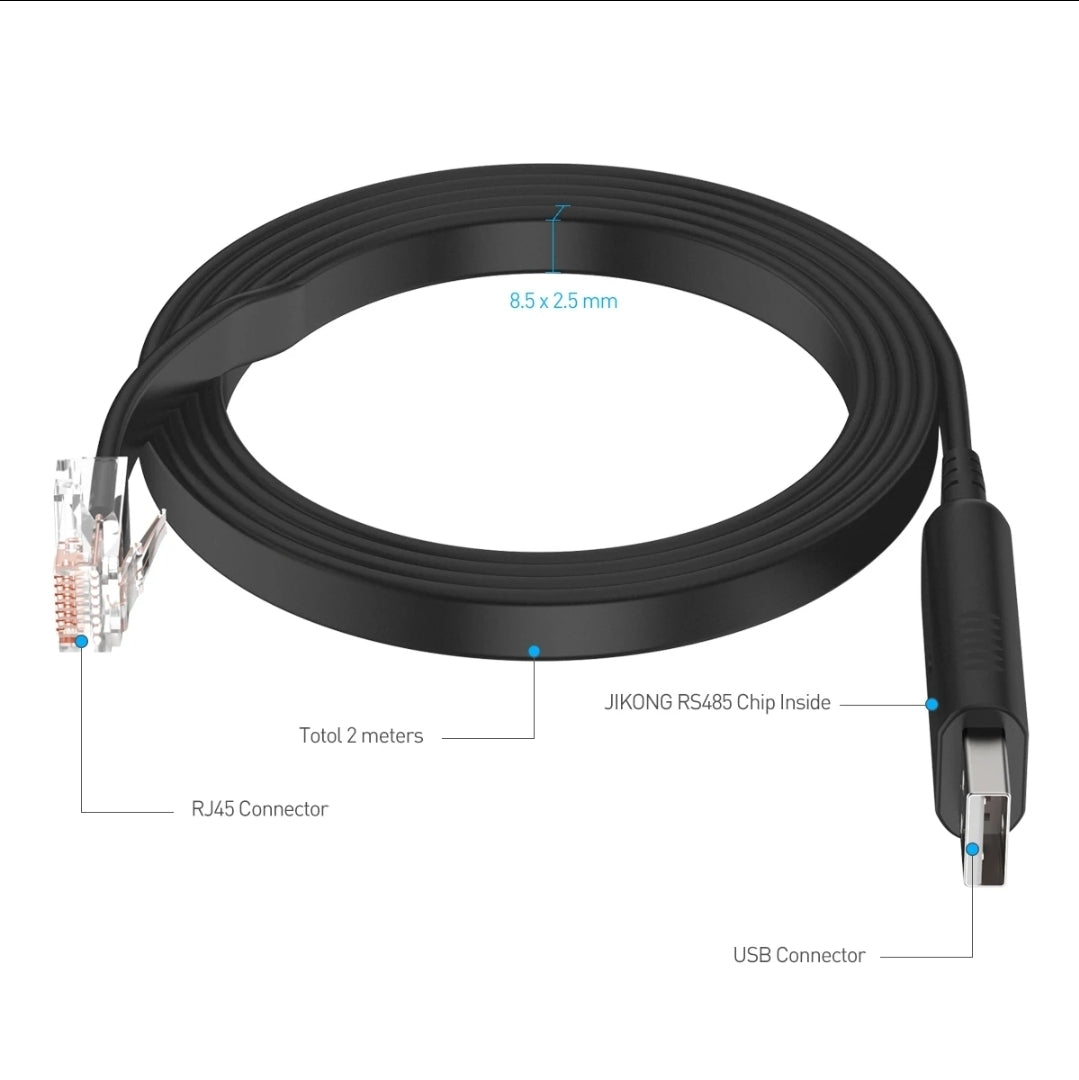

Supports upper computer programs, and the computer can update firmware.
The APP supports inverter selection.
About connection
Dear customer, this product supports parallel connection. If you need to use the parallel function, please purchase this product.
This also supports all the functions of the power BMS.
Dear customer, this product supports parallel connection. If you need to use the parallel function, please purchase this product.
This also supports all the functions of the power BMS.

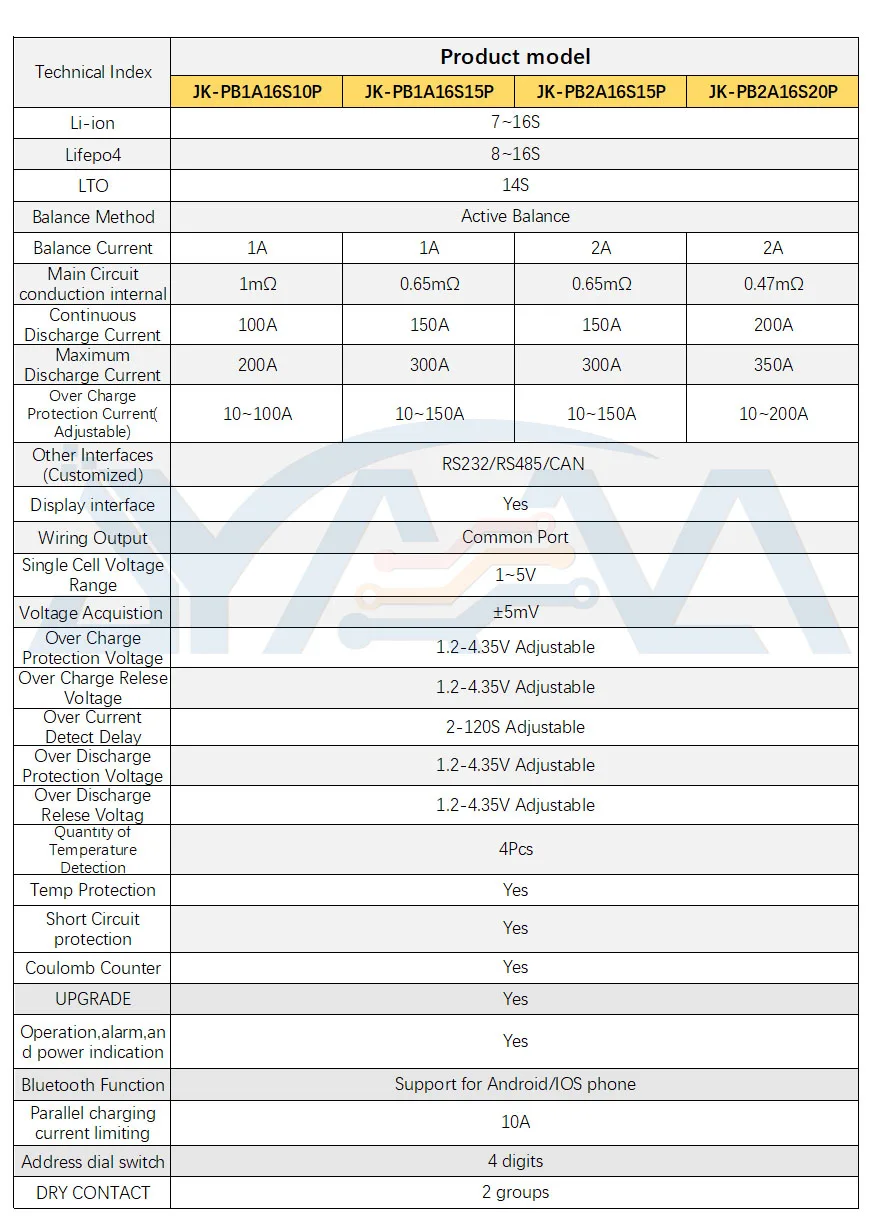

Function

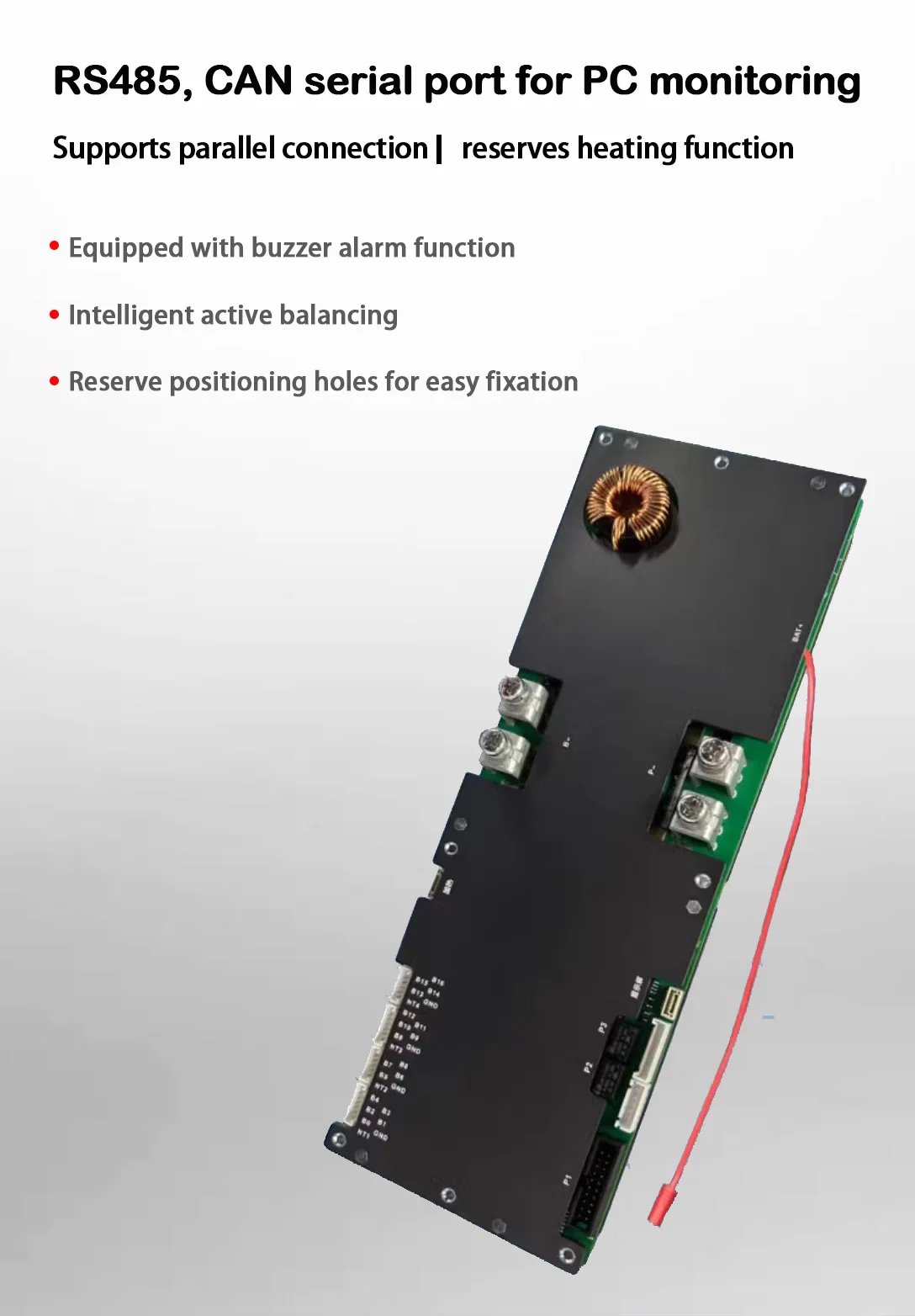

（1）Active balance 1A/2A （2）Current limited 10A （3）PC software upgarde （4）Short circuit protection （5）Support Li-ion/Lifepo4/LTO （6）Operation,alarm,and power indication （7）Bluetooth support Android,IOS,Harmony （8）Support parallel connection （9）Discharger 100A/150A/200A

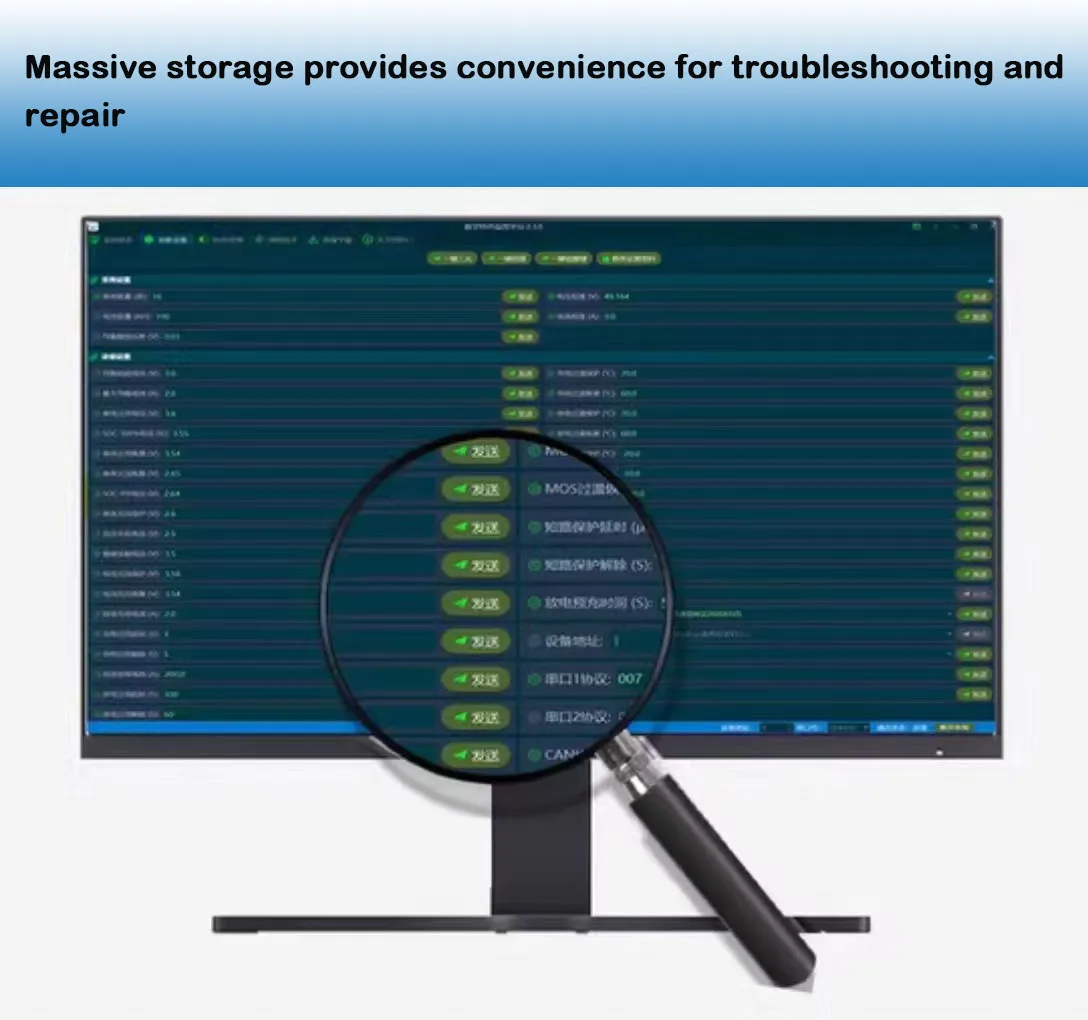

JK Inverter BMS, supporting PC program, comprehensively detecting battery information and condition

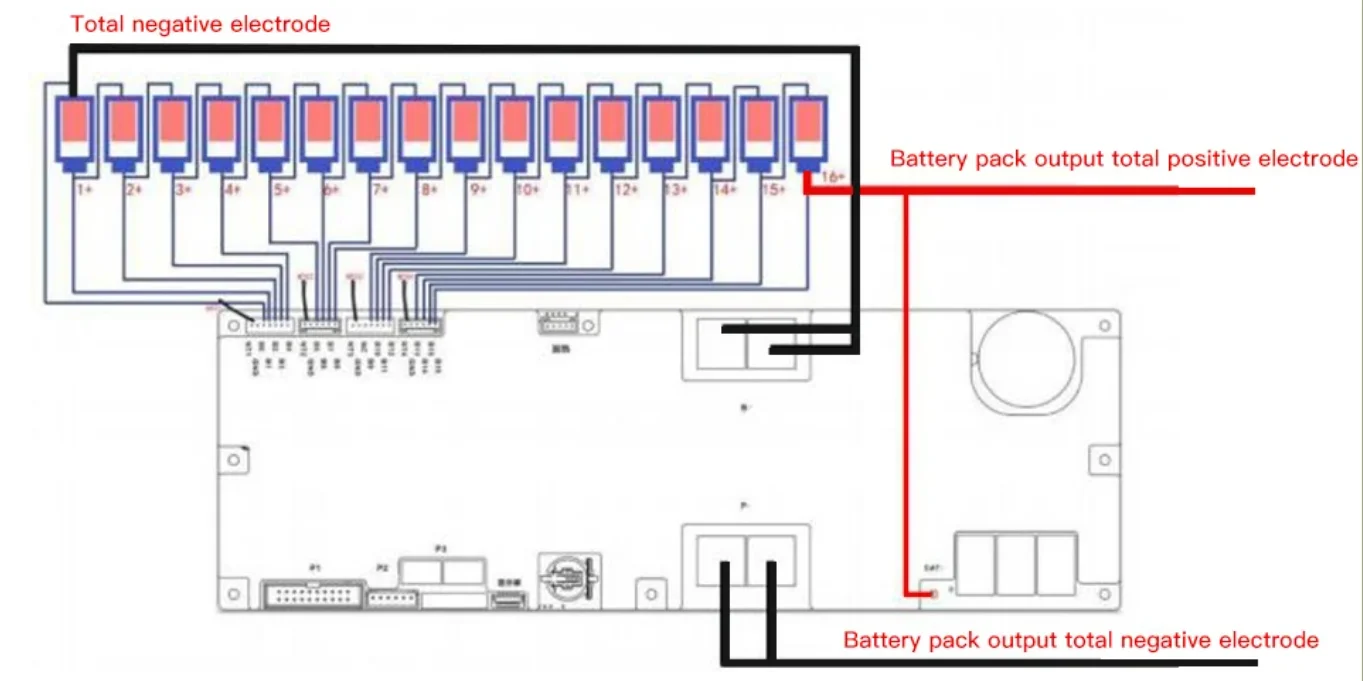

Wiring diagram
There are strict sequirments for the power-on of the protection plate.
First weld B-,P-,B+,P+,and sequentially plug in the battery sampling wire connectou from low to high.After power-on,press the key to activate it.Load or charger can only be added after all connecting wires are installed.When removing,unplug the charger or load first,remove the battery sampling wire connector in sequence from high to low,and finally remove B+,P+,B-,P-

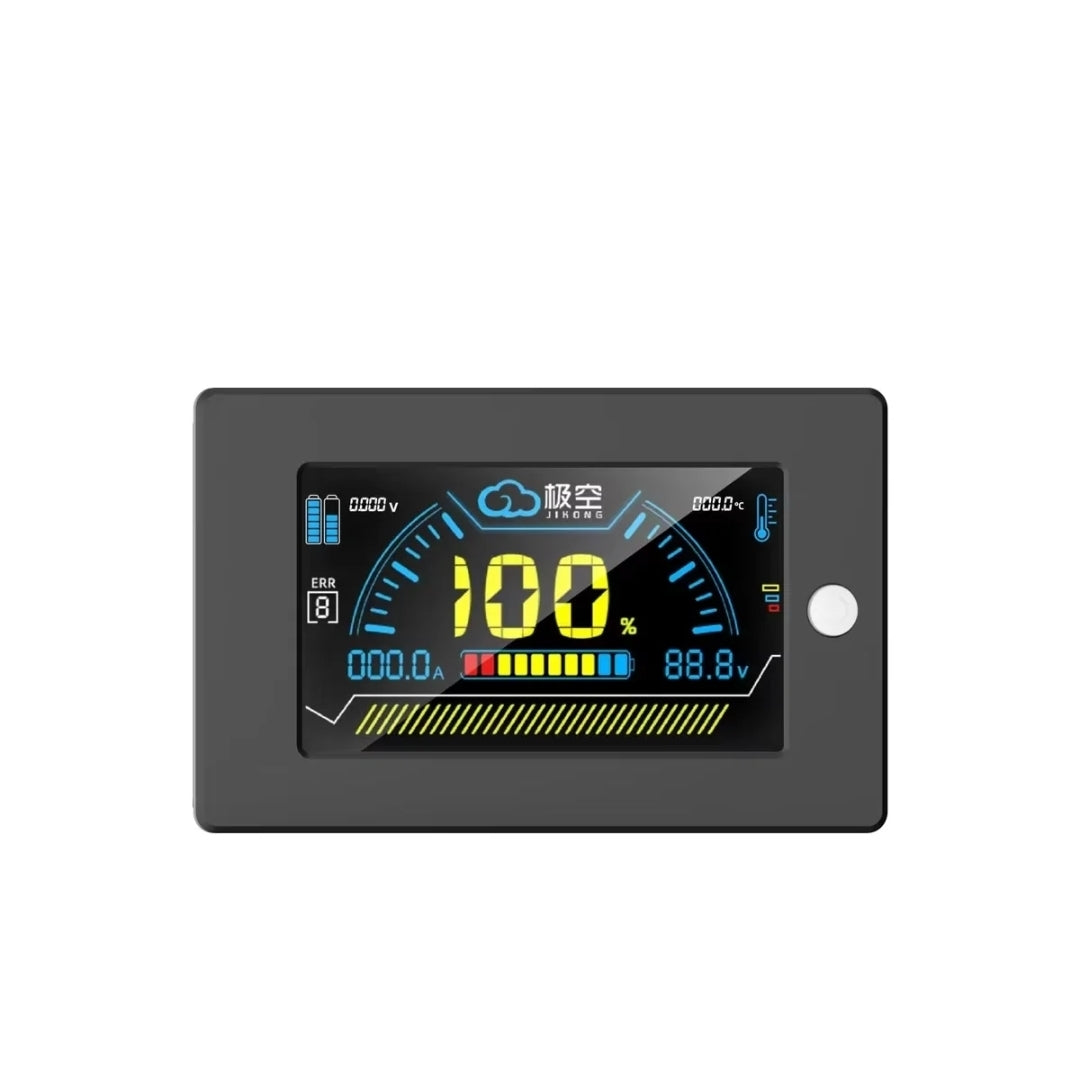

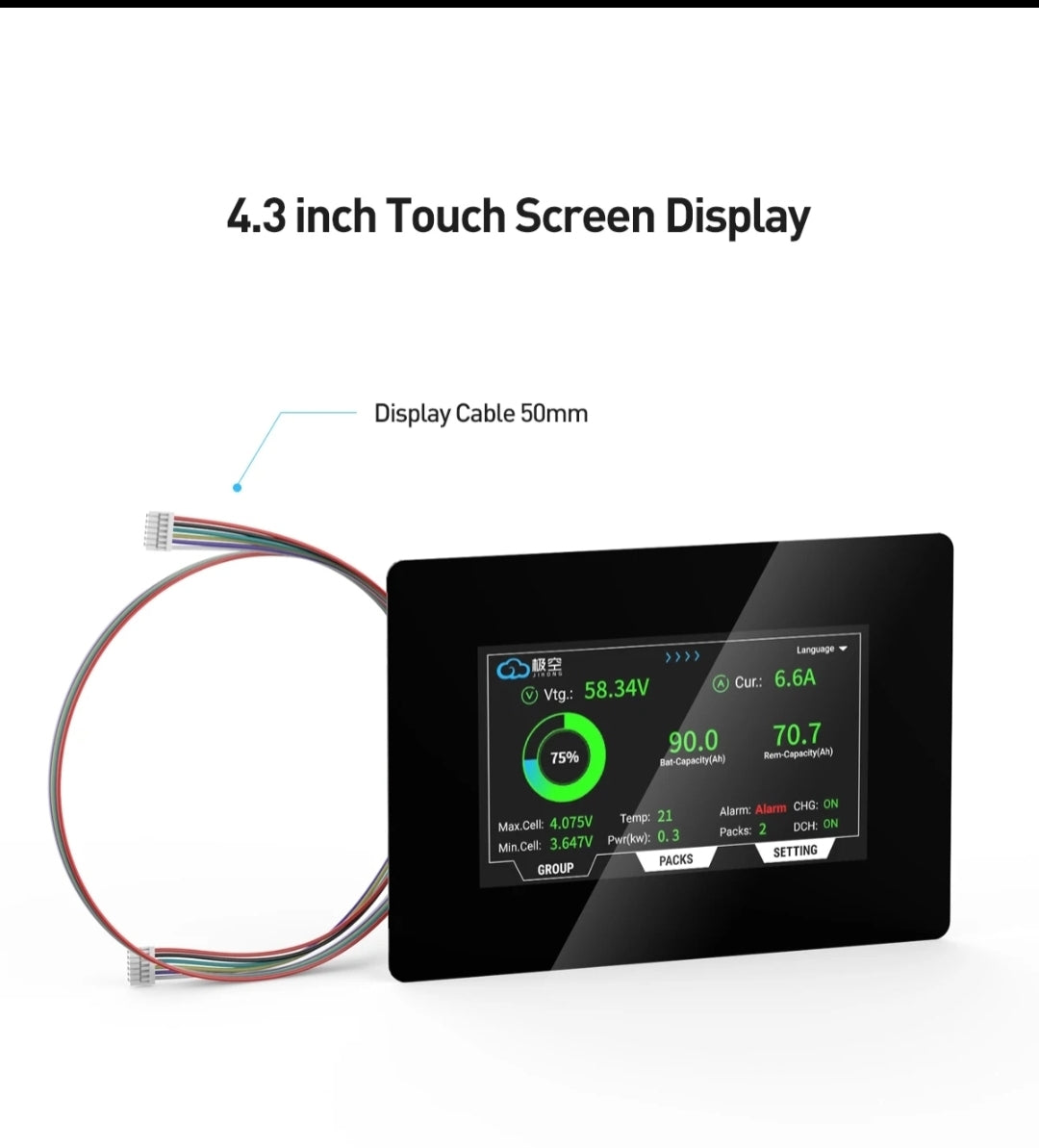

Note: LCD is optional.To purchase an LCD, please purchase a link with an LCD The other accessories are the same. （ 3.2-inch display screen is out of stock)
