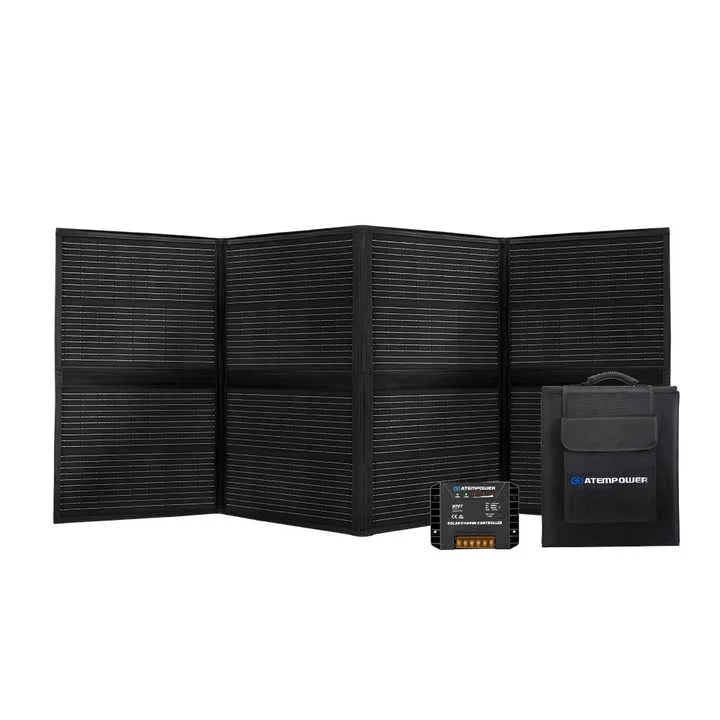

ATEM POWER High Efficiency 200W 12V/18V RV Camping Portable Folding Solar Panel Blanket
ATEM POWER High Efficiency 200W 12V/18V RV Camping Portable Folding Solar Panel Blanket
Regular price
R 5,173.99
Regular price
R 0.00
Sale price
R 5,173.99
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
Specification
|
Solar Panel
|
||
|
Material
|

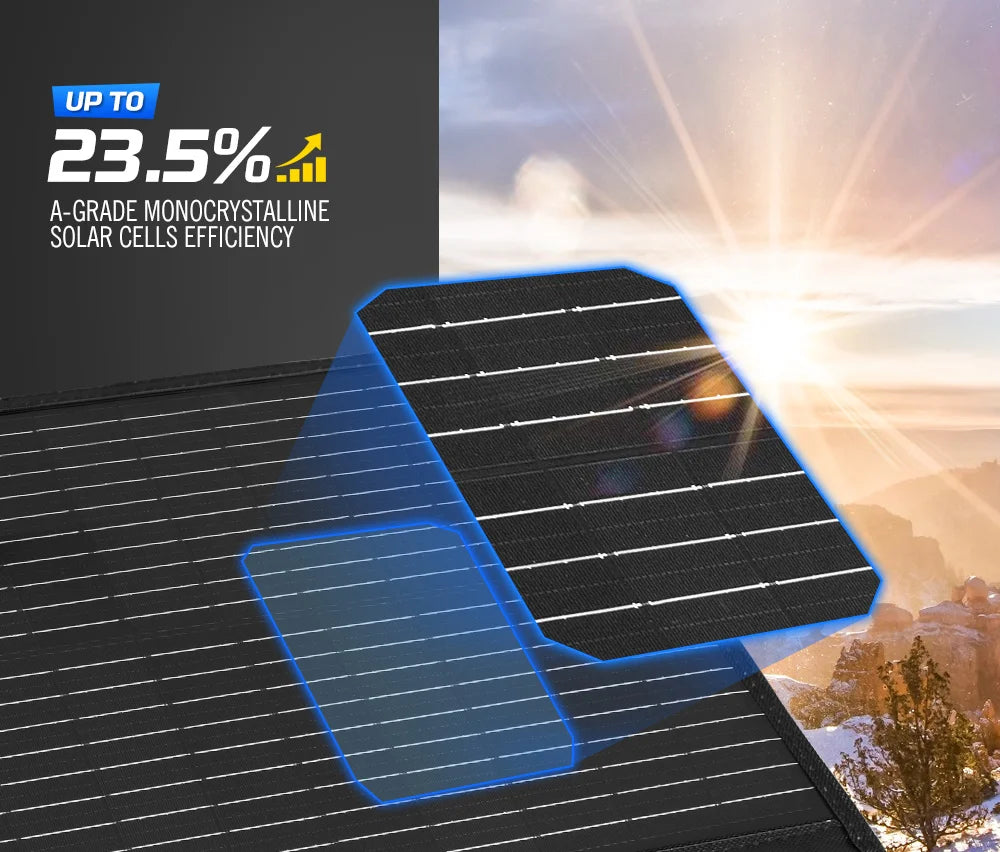

A-Grade Monocrystalline
|
|
|

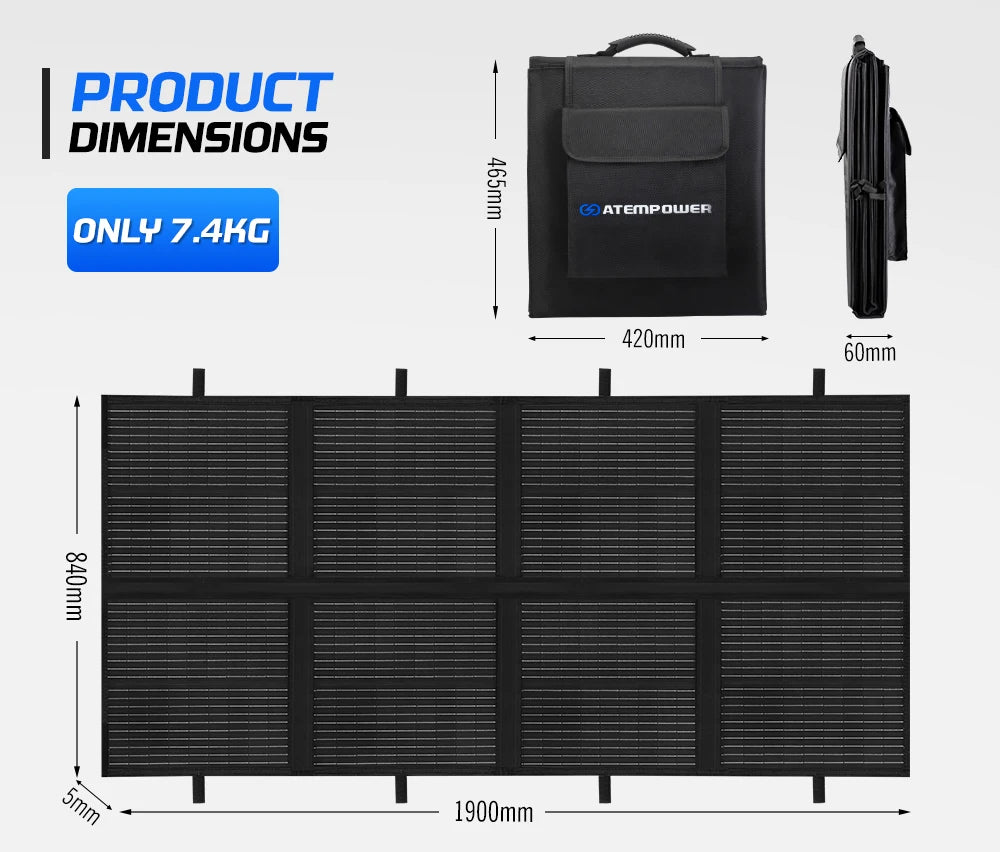

Product Dimension (Unfolded)
|
1900 x 845 x 5mm
|
|
|
Product Dimension (Folded)
|
475 x 420 x 60mm
|
|
|
Maximum Power(Pmax)
|
200W
|
|
|
Voltage at Pmax(Vmp)
|
18.2V
|
|
|
Current at Pmax(Imp)
|
10.99A
|
|
|
Open-Circuit Voltage
|
22.4V
|
|
|
Short-Circuit Current
|
11.75A
|
|
|
Temperature Range
|
-40°C~ +85°C
|
|
|
Warranty
|
1 Year
|
|
|

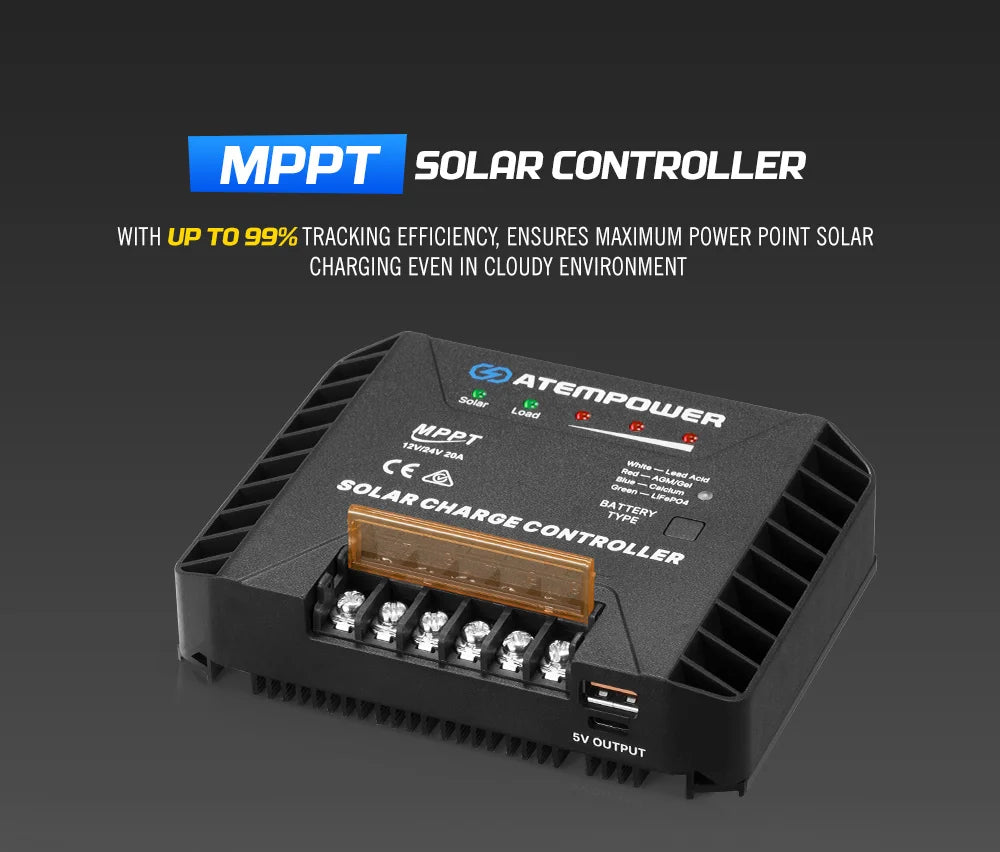

MPPT Controller
|
||
|
Battery Voltage Range:
|
12V/24V
|
|
|
Max. PV Open Circuit Voltage:
|
50V
|
|
|
Max. Solar Input Voltage:
|
50V
|
|
|
Rated Charge Current:
|
20A
|
|
|
Rated Discharge Current:
|
20A
|
|
|
Max. PV Input Power:
|
500W
|
|
|
Discharge Circuit Voltage Drop:
|
≤0.3V
|
|
|
Self Consumption:
|
≤8ma
|
|
|
No Load Current:
|
＜10ma
|
|
|
Tracking Efficiency:
|
99%
|
|
|
Conversion Efficiency:
|
≤ 98%
|
|
|
USB Output:
|
Type A+Type C; 5V/2.4A
|
|
|
Operation Temperature:
|
-20℃~50℃
|
|
|
Storage Temperature:
|
-30℃~70℃
|
|
|
Relative Humidity:
|
≤90%
|
|
