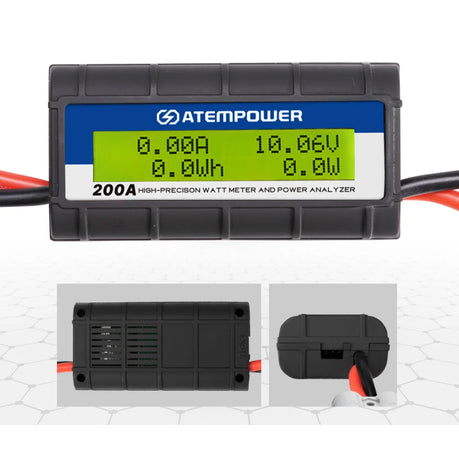

ATEM POWER 12V 200AMP Power Analyzer High Precision, Watt Voltage Amp Meter

About this item

• Real-Time High-Contrast Display: This watt meter features real-time high-contrast display of current, voltage & power continuously with all other 5 values presented sequentially every 2s, which are easy to read in full sun or at night.
• 8 Parameters Measurement: This watt meter provides 8 electrical readings: current, voltage, power, charge, energy, current peak, min voltage & power peak with high resolution 0.01A, 0.01V, 0.1W, 0.001Ah and 0.1Wh.

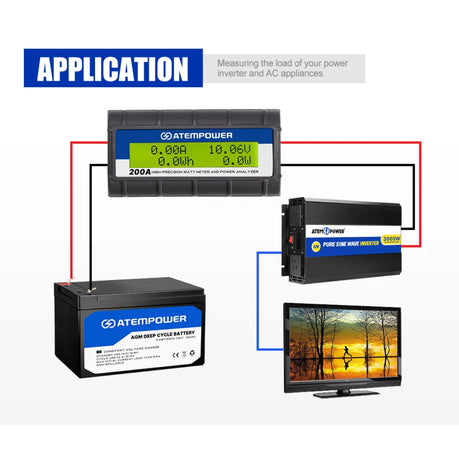

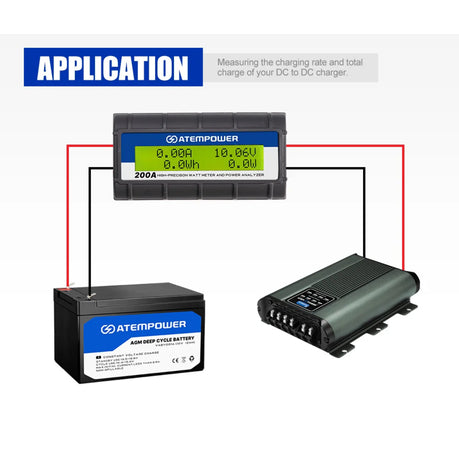

• Super Versatility: Ideal for caravan, camping and dual battery systems, this tough watt meter, which is made of ABS with dense vents to rapidly dissipate heat, allows you to see what is happening with your solar panel, fridge or charging system.

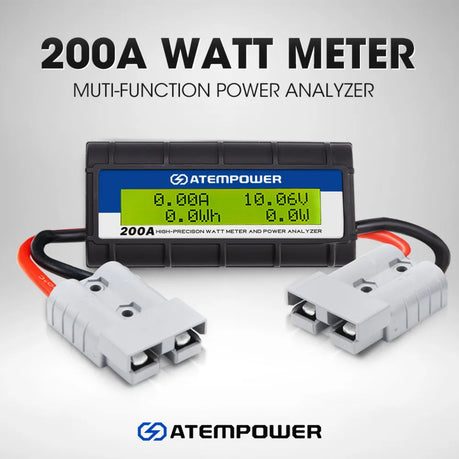

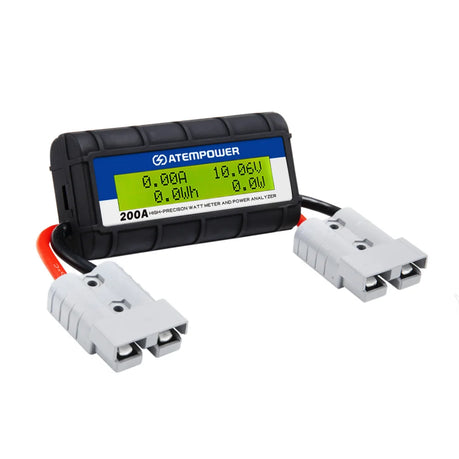

• Easy-to-Use Design: With pre-installed Anderson plugs for easy in-line connection with your solar panels, batteries or loads, this ATEM POWER power analyzer requires no configuration and works automatically.
• Auxiliary Power Option: Using the auxiliary power connector, the meter can not only be powered to measure the range of 0-8V but also achieve more precise measurements, as the measurements do not include the power to operate the meter.

ATEMPOWER 200A WATT METER - Multi-function Power Analyzer

Are you a solar panel system installer or user and thinking about how you can monitor solar energy production and consumption? If the answer is "yes," then check out this watt meter. With pre-installed Anderson plugs for easy in-line connection, it works automatically and can help you get real-time data about various aspects of your solar system.

There is no better or easier way for you to measure your power system than by using a watt meter. This handy little device measures real-time current, voltage, power and energy, and is designed to be safe in systems using less than 60 V and carry currents up to 200A.

ATEMPOWER 200A WATT METER

Cautions

1. Do NOT disassemble or attempt to repair the meter.

2. Do NOT allow water to enter the meter.

3. Make sure all connections going into and from the meter are tight.

4. Exceeding current and voltage limits may permanently damage the watt meter and may also cause personal injury or fire.

5. When the voltage is too low and the watt meter cannot display any readings, connect an auxiliary battery to pin1 and pin2 to power the watt meter.

Specifications:

Operation Voltage:0-60V (0 - 8V with Auxiliary Power)

Operation Current:0-200A

Auxiliary Battery OPER Volt:DC 9-60V

Auxiliary Battery OPER Ct:0.2-0.5A

Operating Temperate:0 (32 ) - 70 (158 )

Measurement Update Period:0.4s

Data Queue Sequence Time:2s

Wire Size:12AWG

LCD Display Screen:16 Character x 2 Row STN LCD
